RPLidar Set Up on Headless Rasberry Pi

By on

In this blog, we will dive into the process of setting up an RPLiDAR on a Rasberry Pi and viewing the output remotely on a Windows PC. This is useful for applications where it is necessary to use a headless Rasberry Pi.

X11 Forwarding

X11 forwarding is the chief tool in our arsenal. It is a method used to remotely run graphical applications on a Linux system and view the output on a separate display such as a local PC.

This is achieved by running a server called an X server locally on the PC. Linux PCs have an in-built X server. Windows and MacOS PCs require the server to be downloaded. Windows systems may use Xming or VcXsrv, while MacOS systems use XQuartz.




Narrowing down to Windows systems, VcXsrv is more powerful and reliable than Xming and is the X server recommended to run large tasks such as RViz.

Set Up Process

On PC

  • Download VcXsrv installer and install the server on your PC.

  • Search for XLaunch and open it. It should bring up the following window:

Screenshot 2025-06-26 124304.png




Ensure the following options are chosen as you go select 'next':

  • Multiple Windows

  • Start no client

  • Clipboard

  • Primary selection

  • Native opengl

  • Disable access control, then select ‘Finish’.

On Rasberry Pi

  • Access the Rasberry Pi on your PC by running ssh rasberry@pi.local.

  • Open a file called sshd_config by running sudo nano /etc/ssh/sshd_config.

  • Scroll to the of the code in the file with the text #X11 Forwarding no or similar. Uncomment the line by deleting the '#' and change it to X11 Forwarding yes. Save and exit.

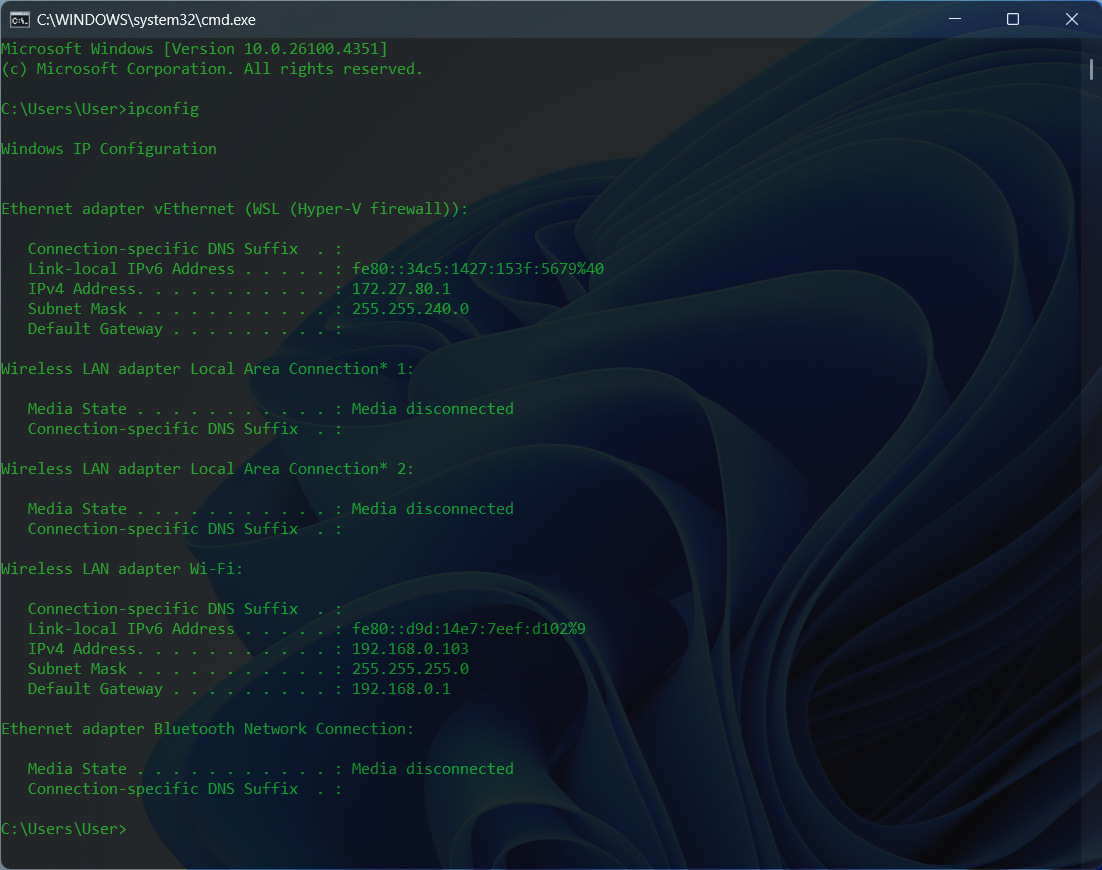

  • Run the command export DISPLAY=PI_IP_Address:0, replacing PI_IP_Address with your PC's IP address. You could get your PC's IP address by running ipconfig on a Windows CMD terminal. The address is usually under IP4V at Wireless LAN adapter Wi-Fi.




Screenshot 2025-06-24 113852.png

The set up should now be ready to run. Confirm this by running rviz2 on the Rasberry Pi terminal. RViz should open on the PC.

  • Clone the SLLiDAR workspace into your Rasberry Pi from GitHub by running git clone https://github.com/Slamtec/sllidar_ros2.git.

  • Source your environment and build your workspace.

  • Now connect the RPLiDAR to the Rasberry Pi. Confirm the port where the LiDAR is connected by running ls /dev/ttyUSB*. You should see the port displayed as /dev/ttyUSB0 or similar. We will use this port when launching the RPLiDAR as the serial_port.



Screenshot 2025-06-26 124156.png

Launch the RPLiDAR using the command ros2 launch ros2 launch sllidar_ros2 view_sllidar_a1_launch.py serial_port:=/dev/ttyUSB0.

RViz should open and the LiDAR output be seen on the PC.
